This page defines and describes static friction. Some of the information presented on this page is also present on the Friction or Rolling Motion page.

The Main Idea

Static friction is a type of Friction that occurs between two touching objects that are not moving with respect to each other at their point of contact. When two objects touch each other and there is no sliding between their surfaces of contact, they exert static friction forces on each other. The static friction force acting on each object opposes any force that would cause it to slide relative to the other object. For example, consider a heavy dresser at rest on the floor. If a child pushes against the side of the dresser in an attempt to slide it, that exerts a force on the dresser, but the ground would exert on it an equal and opposite static friction force that balances the force exerted by the child, so the dresser stays at rest. The static friction force can take on whatever direction and magnitude necessary to balance an external net force that threatens to cause sliding motion between two surfaces. However, the magnitude of the static friction force is limited by a maximum value. If the external force becomes strong enough, the static friction force can be overcome and the surfaces can begin to slide, at which point the friction between the objects becomes Kinetic Friction. For example, now consider an adult pushing against the same heavy dresser. The adult can exert a stronger force than the child, and if it exceeds the maximum possible static friction force, the dresser can be set into motion and slid across the floor.

Static Friction on Rolling Objects

Friction is responsible for the rolling of round objects. When this rolling happens without slipping, the friction is static. Consider a wheel rolling without slipping across the ground. At a glance, it may seem like the friction between the wheel and the ground should be kinetic because the center of the wheel moves relative to the ground. However, to determine the type of friction acting between the wheel and the ground, one must look at the point of contact between them. The point of contact between the wheel and the ground occurs on the edge of the wheel on its lowest point, which is not moving relative to the ground. The point of contact between the wheel and the ground constantly changes but does not slide.

For an object rolling at a constant speed, the magnitude of the static friction force is 0 because there are no forces threatening to cause the object to slip. For an accelerating rolling object, however, such as a disk rolling down a ramp, the static friction force has a nonzero magnitude to prevent the disk from slipping. Without this friction force, a disk placed on a ramp would simply slide down without rotating. It is important to ask oneself whether the static friction force acting on an accelerating rolling object is capable of doing work. The answer depends on whether the rolling object is modeled as a Point Particle System or a Real System. If the system is treated as a point particle, the static friction force is treated as though it acts on the particle's center of mass. It is therefore exerted over a distance and does work, affecting the object's total kinetic energy. If the system is treated as a real object, the static friction force is recognized as acting on the object's stationary edge, and therefore does no work. For the real system, the object's total kinetic energy would be the same even if the static friction force at its edge were absent. The only difference is that now some of its kinetic energy is rotational rather than translational. Point particles cannot have rotational kinetic energy, so the static friction force is treated as though it does work to account for the difference in total kinetic energy.

For more information, see Rolling Motion.

A Mathematical Model

As described above, the magnitude of the static friction force ([math]\displaystyle{ F_s }[/math]) between two objects is bounded by a maximum value. This maximum static friction force is given by

[math]\displaystyle{ F_{s, max} = \mu_s * N }[/math]

where [math]\displaystyle{ \mu_s }[/math] is the coefficient of static friction of the objects and [math]\displaystyle{ N }[/math] is the normal force between the objects. [math]\displaystyle{ \mu_s }[/math] is a property of the materials of the surfaces in contact and is usually less than 1. [math]\displaystyle{ \mu_s }[/math] has no units because it is a ratio of one force to another. For any given pair of surfaces, their [math]\displaystyle{ \mu_s }[/math] value is greater than their [math]\displaystyle{ \mu_k }[/math] value.

This formula may also be written

[math]\displaystyle{ F_s \leq \mu_s * N }[/math].

For problems involving rolling objects, the static friction usually does not reach its maximum allowed by the formula above. In fact, you may not be told the value the coefficient of static friction, only that it is high enough to prevent the object from slipping. For more information about this type of problem, see Rolling Motion.

A Computational Model

This is a VPython simulation of a box held in place by static friction. A steadily increasing external force, shown by the green arrow, is balanced by an equal and opposite static friction force, until the magnitude of the external force exceeds [math]\displaystyle{ \mu_s * N }[/math]. At this time, the box begins to move and the friction becomes kinetic.

Static friction simulation

Click "View this program" on the top left corner to view the VPython code.


Be sure to show all steps in your solution and include diagrams whenever possible

1. (Simple)

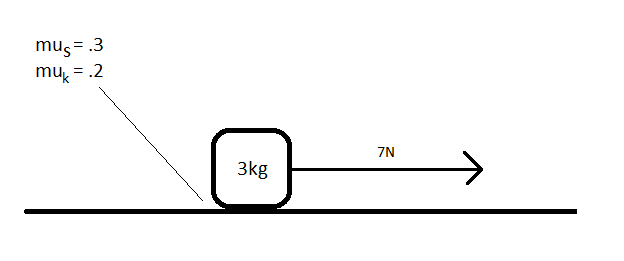

A box sits at rest on a table. The box has a mass of 3kg, the coefficient of static friction between the box and the table is .3, and the coefficient of kinetic friction between the table is .2. A horizontal external force of 7N is applied to the box. Does the box remain at rest?


The maximum static friction force [math]\displaystyle{ F_{s, max} }[/math] is given by the equation

[math]\displaystyle{ F_{s, max} = \mu_s * N }[/math]

Since the table is a horizontal surface and the box is not accelerating vertically, the normal force must be equal in magnitude to the block's weight, or [math]\displaystyle{ 3 * 9.8 = 29.4 }[/math] N.

[math]\displaystyle{ F_{s, max} = .3 * 29.4 = 8.82 }[/math]N

The external force is only 7 N, and the static friction force can be up to 8.82N, so the static friction force is able to balance the external force and keep the block at rest.

2. (Middling)

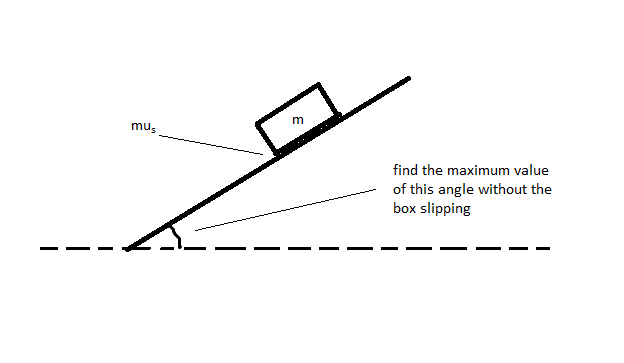

A box of mass [math]\displaystyle{ m }[/math] sits on an inclined plane. The coefficient of static friction between the box and the inclined plane is [math]\displaystyle{ \mu_s }[/math]. What is the steepest the inclined plane can be without the box slipping down the ramp?

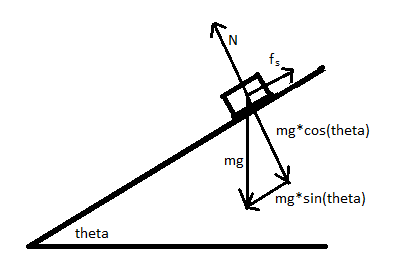

Let us call the angle that the box makes with the horizontal [math]\displaystyle{ \theta }[/math]. This makes the gravitational force down the ramp [math]\displaystyle{ mg\sin\theta }[/math] and the normal force between the box and the ramp [math]\displaystyle{ mg\cos\theta }[/math].

When the ramp is as steep as it can be without slipping, the gravitational force down the ramp is balanced by the maximum possible static friction force up the ramp, so the following equation is true:

[math]\displaystyle{ mg\sin\theta = F_{s, max} }[/math]

[math]\displaystyle{ mg\sin\theta = \mu_s * N }[/math]

[math]\displaystyle{ mg\sin\theta = \mu_s * mg\cos\theta }[/math]

dividing both sides by [math]\displaystyle{ mg\cos\theta }[/math] yields

[math]\displaystyle{ \tan\theta = \mu_s }[/math]

[math]\displaystyle{ \theta = \tan^{-1}\mu_s }[/math]

3. (Middling)

An 80 kg person is riding a centrifuge at a carnival. The radius of the ride is 5m, and the coefficient of static friction [math]\displaystyle{ \mu_s }[/math] = .4. At what speed must the centrifuge spin the rider so that they don't slip when the floor is withdrawn?


4. (Difficult)

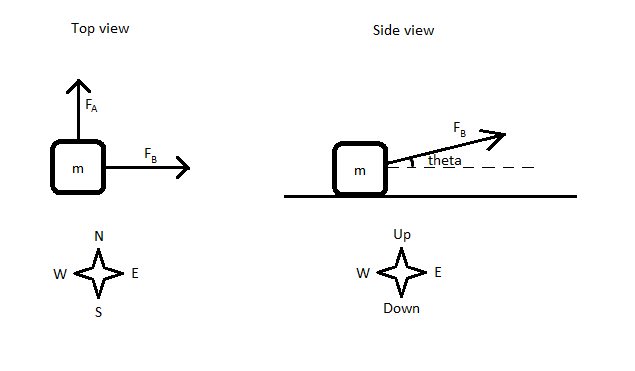

A crate of mass [math]\displaystyle{ m }[/math] lies at rest on a flat horizontal surface. The coefficient of static friction between it and the ground is [math]\displaystyle{ \mu_s }[/math]. Two people are pushing on the crate, applying forces to it. Person A applies a horizontal force in the northerly direction with a magnitude of [math]\displaystyle{ F_A }[/math]. Person B applies a force in the easterly direction with a magnitude of [math]\displaystyle{ F_B }[/math]. However, this force is not perfectly horizontal; it is directed with an angle [math]\displaystyle{ \theta }[/math] above the horizontal. In terms of the other variables given, what is the minimum magnitude of [math]\displaystyle{ F_A }[/math] that would cause the crate to move?


To get the crate to move, the net horizontal force must exceed the maximum possible static friction force.

The net horizontal force is given by

[math]\displaystyle{ F_{net,horizontal} = \sqrt{F_A^2 + (F_B\cos\theta)^2} }[/math] by Pythagorean theorem

The maximum static friction force is given by

[math]\displaystyle{ F_{s,max} = \mu_s * N }[/math]

[math]\displaystyle{ F_{s,max} = \mu_s * mg - F_B\sin\theta }[/math] since the vertical component of person B's force helps lift the box

Let us set [math]\displaystyle{ F_{net,horizontal} }[/math] equal to [math]\displaystyle{ F_{s,max} }[/math] since that is the minimum value of [math]\displaystyle{ F_{net,horizontal} }[/math] to get the crate to move

[math]\displaystyle{ \sqrt{F_A^2 + (F_B\cos\theta)^2} = \mu_s * mg - F_B\sin\theta }[/math]

[math]\displaystyle{ F_A = \sqrt{(\mu_s * mg - F_B\sin\theta)^2 - (F_B\cos\theta)^2} }[/math]


Static friction is present in many places in everyday life. Sometimes, it is an inconvenience, such as when trying to move heavy objects. Sometimes, it is necessary for certain machines and activities. Below are some examples of scenarios in which static friction plays an essential role.

Driving and walking

Static friction between the car wheels and the ground is responsible for the car's acceleration. Without static friction, pressing the accelerator would simply cause the wheels to spin in place over the ground. Similarly, static friction between our feet and the ground allows us to walk by pushing off of the ground.

Screws, nails, and bolts

Screws, nails, and bolts fix objects together and rely on friction to do so. Screws and nails are inserted directly into a material. The fact that they have to displace that material in order to fit in compresses that material, which in turn causes a high normal force between the material and the sides of the nail or screw. This makes it difficult to pull it out, especially in the case of screws, where the twisting motion necessary increases the distance over which the friction force is exerted and therefore increases the energy required to remove it. A bolt similarly experiences a high normal force between its outer edge and the inner edge of the corresponding nut, which is manufactured to be a tight fit.

Machine belts

Machine belts transmit power from one spinning wheel to another in a variety of machines. Static friction between the belt and each wheel allows for this.

Holding objects

Friction is in part what allows us to hold objects in our hands. The normal force provided by our grip creates a static friction between the hand and the object.
