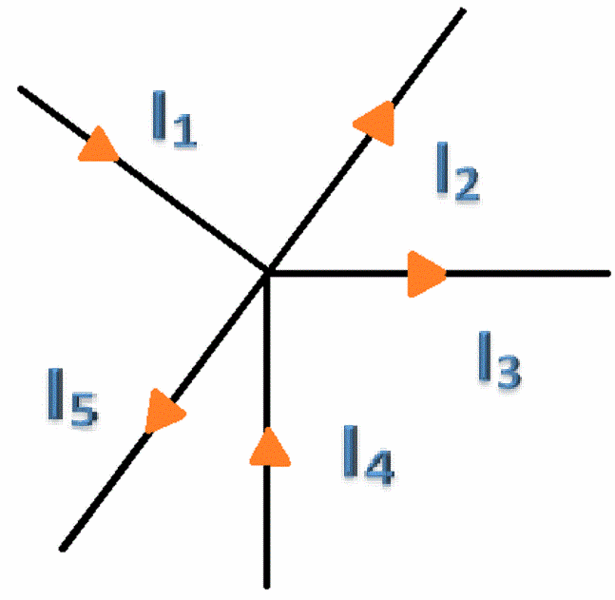

The node (or junction) rule states that the current flowing in is equal to the current that flows out.
